Quick Seal qPCR Ultra 9095-10130

Quick Seal qPCR Ultra 9095-10130

Quick Seal qPCR Ultra 9095-10130

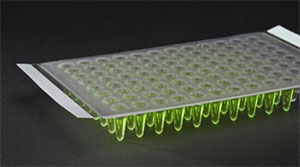

An optically clear, DMSO resistant pressure sensitive seal which is suited for qPCR (96- or 384-well) fluorescence, crystallation, storage. A transparent nontacky film which adheres only when pressure is applied. It is pierceable and peelable. Good temperature and chemical resistance and withstands tough application environments. High Adhesion Strength.

9095-10130-080LRStandardLabRoll1 roll100M x 80mm
9095-10130-080SRSterileLabRoll1 roll100M x 80mm
9095-10130-080LSStandardLabSheet100 sheets140mm x 80mm
9095-10130-080SSSterileLabSheet100 sheets140mm x 80mm
9095-10130-080TSTrialLabSheet5 sheets140mm x 80mm
9095-10130-080TRTrialLabSheet1 roll5M x 80mm

Polypropylene (PP), Polyethylene (PE), Polystyrene (PS), Cyclo Olefin Copolymer (COC).

qPCR (94 or 384 well) and situations where fluorescence is experienced.

Store in a cool place. Avoid direct exposure to sunlight. It is recommended to use the seals within three years from date of purchase. Three years when stored at 21˚C (70˚F), 50% relative humidity, out of direct sunlight, in original packaging.

Temperature range -40˚C to 110˚C.

Recommended sealing Equipment: KAPS 500/Seal-it 100/Manual Roller.


Visual Description

Clear plastic, reflective, glossy on the top. Very thin and light and does not crease easily.

Physical Properties
Pressure sensitive adhesive tape, so the seal side does not feel sticky. Mainly used for bonding materials to various substrates. Temperature range: -40˚C to +121˚C.


Mass Loss

Confirming the materials ability to resist high temperatures. Results: Pass.
Details: Mass loss of solution evaluated after 30 cycles of 3 step PCR Programme.
Equipment: ABI Thermocycler, Precision Balance.

Measuring the force required to push a standardised needle through the material via compression measuring equipment. Results: N/A.
Details 5 tests run using a standardised needle, ensuring that less than 10N is required to pierce the surface & access the wells. Equipment Instron 3343 Tensometer.

Determining the materials optical clarity by measuring the transmission of emissive dye through the material. Results Pass.
Details Record the light transmission of a sealed microplate using a Flurophore dye stock solution and a microplate reader. Equipment BMG Labtech - FluroStar.

Measuring the materials permanence of adhesion & its ability to be removed, via extension measuring equipment. Results: Pass.
Details Cohesive Failure, Adhesive Transfer, Material tear & Successful Peel are measured & recorded after a 180˚C peel test. Equipment Instron 3343 Tensometer.

Low Temperature Seal Test
Confirming the materials ability to breath. Results: Pass.
Details: Microplates are sealed at specified low temperatures & subjected to a series of tests to substantiate seal integrity. Equipment: Laboratory Cold storage unit.

Evaluating the materials resistance to solvents (DMSO used as an aggressive standard) Results: Pass.
Details Sealed plate is subjected to a high concentration of DMSO for a time period at low temperatures after which seal damage & volume loss are determined. Equipment Laboratory Cold storage unit, DMSO solution.

Plate Types
Polypropylene (PP), Polyethylene (PE), Polystyrene (PS), Cyclo Olefin Copolymer (COC).

QC testing is carried out to ensure that products are free from nucleases (DNases & RNases) as well as human genomic DNA. Although every effort is made, including cleanroom manufacture, to maintain this level of cleanliness, best laboratory practice with regards to duplicate testing should be followed.

Kbio quote button

For pricing details, please email us by clicking the QUOTE icon above and we will get back to you.

pdf download icon

For further information, please download our Sealing foils and films data sheet (click the pdf icon above).
