Pierce Seal Foil 9095-10106
Description

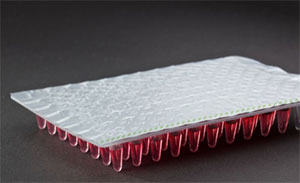

A pierceable foil seal with easy sealing surface identification and high solvent resistance including DMSO. The film is non-peelable, pierceable and re-sealing is permissible.
| Code | Sterile | Description | Quantity | Size |
|---|---|---|---|---|
| 9095-10106-078LR | ** Std | LabRoll | 1 roll | 610M x 78mm |
| 9095-10106-078SR | ** Sterile | LabRoll | 1 roll | 610M x 78mm |
| 9095-10106-115LR | *** VII Std | LabRoll | 1 roll | 500M x 115mm |
| 9095-10106-115SR | *** Sterile VII | LabRoll | 1 roll | 500M x 115mm |
| 9095-10106-078LS | * Std | LabSheet | 100 sheets | 125mm x 78mm |
| 9095-10106-078SS | * Sterile | LabSheet | 100 sheets | 125mm x 78mm |
| 9095-10106-078TR | Trial | LabRoll | 1 roll | 5M x 78mm |
| 9095-10106-115TR | Trial | LabRoll | 1 roll | 5M x 115mm |
| 9095-10106-078TS | Trial | LabSheet | 5 sheets | 125mm x 78mm |
Compatibility
Polypropylene (PP), Polystyrene (PS).
Application
Low temperature and ambient temperature storage with DMSO and other solvents. PCR, compound storage, sample shipping.
Storage
Store in a cool place. Avoid direct exposure to sunlight. It is recommended to use the seals within three years from date of purchase. Three years when stored at 21˚C (70˚F), 50% relative humidity, out of direct sunlight, in original packaging.
Properties
Temperature range -20˚C to 120˚C.
Sealing
Temperature and Dwell Time: 175˚C, 2 seconds Recommended sealing
Equipment: * Efly, Kseal, 4s2 ** Wasp, ThermoALPS300/3000, Kube, Flexiseal,
Chameleon, REMP (PHS) *** Agilent VII Plateloc, REMP (LHS/SHS).
Polypropylene (PP), Polystyrene (PS).
Application
Low temperature and ambient temperature storage with DMSO and other solvents. PCR, compound storage, sample shipping.
Storage
Store in a cool place. Avoid direct exposure to sunlight. It is recommended to use the seals within three years from date of purchase. Three years when stored at 21˚C (70˚F), 50% relative humidity, out of direct sunlight, in original packaging.
Properties
Temperature range -20˚C to 120˚C.
Sealing
Temperature and Dwell Time: 175˚C, 2 seconds Recommended sealing
Equipment: * Efly, Kseal, 4s2 ** Wasp, ThermoALPS300/3000, Kube, Flexiseal,
Chameleon, REMP (PHS) *** Agilent VII Plateloc, REMP (LHS/SHS).
SPECIFICATIONS
Visual Description
Metallic reflective foil, with both sides appearing very similar. Dashed line denotes the upper surface.
Physical Properties
Very flexible foil, not easily creased. Temperature Range: -20˚C to 120˚C.
TEST PROCEDURES
Mass Loss
Confirming the materials ability to resist high temperatures. Results: Pass.
Details: Mass loss of solution evaluated after 30 cycles of 3 step PCR Programme. Equipment: ABI Thermocycler, Precision Balance.
Pierce
Measuring the force required to push a standardised needle through the material via compression measuring equipment. Results: Pass.
Details 5 tests run using a standardised needle, ensuring that less than 10N is required to pierce the surface & access the wells. Equipment Instron 3343 Tensometer. Test Value = 4.49N.
Burst Testing
Determining the materials adhesion to the plate. Results Pass.
Details Record the light transmission of a sealed microplate using a Flurophore dye stock solution and a microplate reader. Equipment BMG Labtech - FluroStar.
Peel
Measuring the materials permanence of adhesion & its ability to be removed, via extension measuring equipment. Results: Pass.
Details Cohesive Failure, Adhesive Transfer, Material tear & Successful Peel are measured & recorded after a 180˚ peel test. Equipment Instron 3343 Tensometer.
Low Temperature Seal Test
Confirming the materials ability to resist low temperatures. Results: Pass.
Details: Microplates are sealed at specified low temperatures & subjected to a series of tests to substantiate seal integrity. Equipment: Laboratory Cold storage unit.
Solvent
Evaluating the materials resistance to solvents (DMSO used as an aggressive standard) Results: N/A.
Details Sealed plate is subjected to a high concentration of DMSO for a time period at low temperatures after which seal damage & volume loss are determined. Equipment Laboratory Cold storage unit, DMSO solution.
Plate Types, Sealing Temp. Time Settings
Polypropylene(PP), Polystyrene (PS).
Details Sealed plate is subjected to a high concentration of DMSO for a time period at low temperatures after which seal damage & volume loss are determined. Equipment Laboratory Cold storage unit, DMSO solution.
QC testing is carried out to ensure that products are free from nucleases (DNases & RNases) as well as human genomic DNA. Although every effort is made, including cleanroom manufacture, to maintain this level of cleanliness, best laboratory practice with regards to duplicate testing should be followed.
